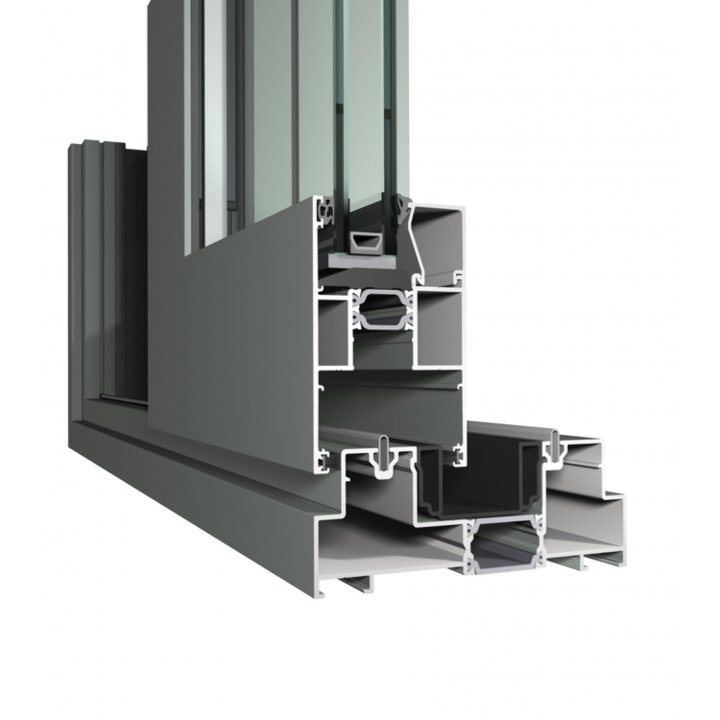

REYNAERS CP 130 lift-and-slide system
REYNAERS CP 130 lift-and-slide is available with various opening options, and the low threshold option offers a solution for improving building accessibility. The special corner solution makes it possible to open up spaces without a fixed corner element, creating perfect continuity between interior and exterior spaces. This makes CP 130 ideal for rooms with a view. This robust system allows the construction of large, stable sliding windows and doors with a sash weight of up to 300 kg. It also offers an elegant, aesthetic central profile. In addition, CP 130 can comply with burglar resistance class 2, providing a safe and secure solution.
Technical characteristics of the system:
- Maximum sash height: 2700 mm
- Maximum sash width: 2600 mm
- Maximum sash weight: 300 kg
- Glazing thickness from 24 mm to 43 mm
- Glazing method with EPDM or neutral silicones
- Thermal polyamide strips reinforced with fibreglass
- Air permeability, maximum test pressure: 4 (600 Pa)
- Watertightness: E750 (750 Pa)
- Wind resistance: C4 (1600 Pa)
- Acoustic performance: Rw (C; Ctr) = 35 (-1; -3) dB / 37 (0; -2) dB, depending on the glazing type
- Burglar resistance: RC 2 / WK 2
- Thermal insulation: (Uf) 2.35 W/m²K
