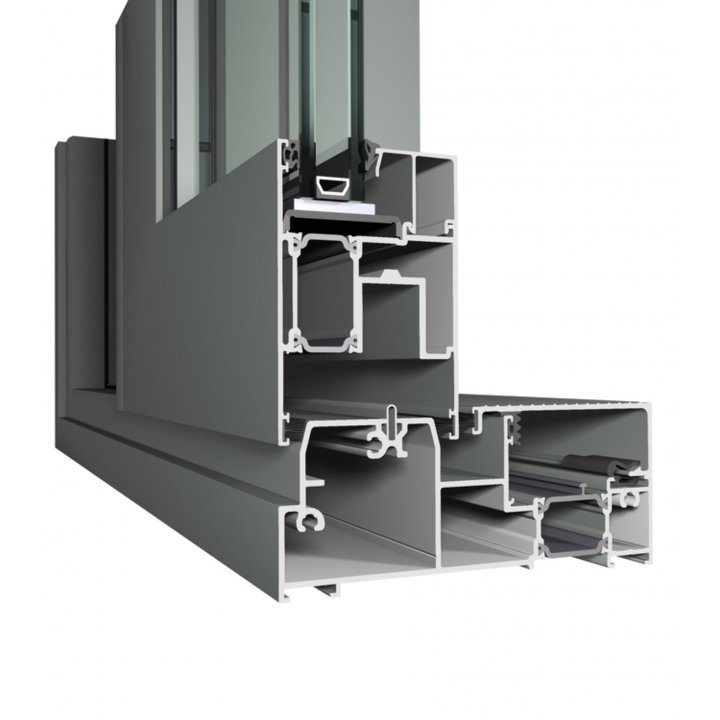

REYNAERS CP 155 lift-and-slide system
REYNAERS CP 155 is a top-class aluminium lift-and-slide system with a thermal break, capable of producing sashes up to 3 m high and weighing up to 400 kg. The concept of the system fully meets customers' high expectations: quality, high thermal insulation performance and ease of use. A solution for automatic opening is also available, for maximum comfort for the user. Technical specifications of REYNAERS CP 155
- width of double / triple track: 155 mm / 242 mm; sash: 68 mm; polyamide insulating insert: 31 mm; maximum glazing unit thickness: from 13 mm to 52 mm; system REYNAERS hardware, in all colours from the "RAL", "Coatex", anodised and Inox ranges, matching the colour of the profiles; the system has a full set of unique Reynaers system stainless steel fasteners, EPDM gaskets, polyamide and other types of system insulators and accessories.
The main standards that the REYNAERS CP 155 system meets, and for which it provides certificates, are:
- air permeability: up to 600 Pa, class A4; water tightness: up to 450 Pa, class 8A; wind load resistance: up to 1600 Pa, class C4; burglar resistance: WK 2; thermal insulation: Uf ≥ 2.15 W/m2K, depending on the frame/sash combination; sound insulation: Rw (C; Ctr) ≤ 43 (-1; -5) dB, depending on the acoustic performance of the glazing unit.
